Hand geometry is considered the most industrial biometric in the market because it accurately verifies employee identity in environments where dirt, dust, and wet conditions limit accuracy of other biometrics. Verification takes less than 1 second, so even large groups of employees can be verified quickly and efficiently.
Dramatically reduces payroll costs Easily integrates with workforce management
software packages.
8 ATM-style soft function keys make dynamic labeling a snap.
3.8 inch QVGA display lets users access more information per screen.
Large LED light bar for easier visual response.
Antimicrobial-infused platen, keypads and chassis.
Part number
Size (W x H x D)
Weight
Power
Environment
Verification time
Template size
Communications
Data management keys
GT-400 (standard model with Ethernet)
8.0 in x 11.18 in x 7.52 in (20.32 cm x 28.40 cm x 19.10 cm)
5.8 lbs (2.63 kg)
10.8 to 13.5 VDC
Operating: 32˚F to 113˚F (0˚C to 45˚C)
Relative humidity: 5% to 85% NC
Non-operating (storage): 14˚F to 140˚F (-10˚C to 60˚C)
Less than one second
20 bytes
Standard Ethernet 10/100 RJ-45 type connector
8 programmable soft keys, user definable, supports
Validation tables
Employee information fields
Multi-level prompting
Key restriction by employee
Decision menus
Punch review
Provides the most accurate time and attendance solution available
Saves money over card-based systems
Dramatically reduces payroll costs
Easily integrates into existing network infrastructures
Eliminates badges
Eliminates buddy punching
Fast and easy to use
Comes standard with an Ethernet card
Up to 100 users
Platen also comes standard with a printed
hand outline to ensure accurate hand placement while punching
Part number
Size (W x H x D)
Weight
Power
Environment
Verification time
Memory retention
Transaction usage
ID number length
User capacity
Template size
User record size
Communications
HP-1000E
8.85" x 11.65" x 8.55" (22.3 cm x 29.6 cm x 21.7 cm)
6 lbs (2.7 kg)
12 to 24 VDC or 12 to 24 VAC 50-60 Hz, 7 watts
Operating: 32˚F to 113˚F (0˚C to 45˚C)
Relative humidity: 20% to 80% NC
Non-operating (storage): 14˚F to 140˚F (-10˚C to 60˚C)
Relative humidity: 5% to 85% NC
Less than one second
Up to 5 years via the standard internal lithium battery
5120 transactions, -XL model 7680 transactions
1 to 10 digits from keypad
100 users
9 bytes
Standard units 16 bytes, -XL models 77 bytes
Ethernet 10 Base-T (TCP/IP)
RS-232 serial output only
Provides the most accurate time and attendance solution available
Saves money over card-based systems
Dramatically reduces payroll costs
Easily integrates into existing network infrastructures
Eliminates badges
Eliminates buddy punching
Fast and easy to use
Comes standard with an Ethernet card
Up to 512 users
Platen also comes standard with a printed
hand outline to ensure accurate hand placement while punching
Part number
Size (W x H x D)
Weight
Power
Environment
Verification time
Memory retention
Transaction usage
ID number length
User capacity
Template size
User record size
Communications
Card reader input

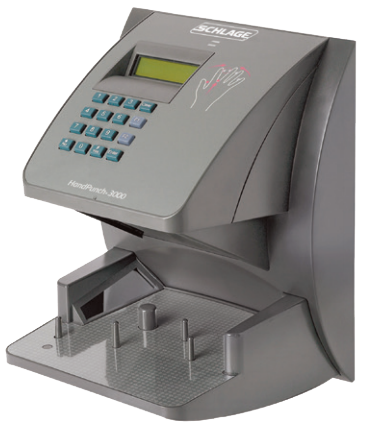

HP-3000E
8.85" x 11.65" x 8.55" (22.3 cm x 29.6 cm x 21.7 cm)
6 lbs (2.7 kg)
12 to 24 VDC or 12 to 24 VAC 50-60 Hz, 7 watts
Operating: 32˚F to 113˚F (0˚C to 45˚C)
Relative humidity: 20% to 80% NC
Non-operating (storage): 14˚F to 140˚F (-10˚C to 60˚C)
Relative humidity: 5% to 85% NC
Less than one second
Up to 5 years via the standard internal lithium battery
5120 transactions, -XL model 7680 transactions
1 to 10 digits from keypad
512 users with field upgrade up to 32,512 users
9 bytes
Standard units 16 bytes, -XL models 77 bytes
Ethernet 10 Base-T (TCP/IP)
RS-232 serial output only
Proximity, Wiegand, magnetic stripe, bar code
(5 VDC provided by HandReader)
Provides the most accurate time and attendance solution available
Fast and easy to use
Complete flexibility through
10 data management keys
Eliminates badges
Eliminates buddy punching
Reduces supervisor workload
Part number
Size (W x H x D)
Weight
Power
Environment
Verification time
Memory retention
Transaction usage
ID number length
User capacity
Template size
User record size
Communications
Card reader input

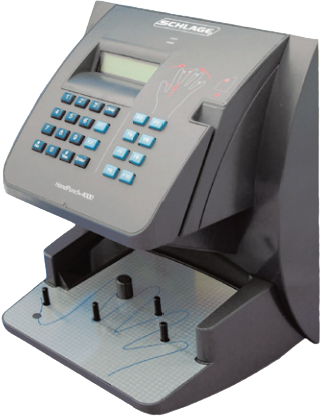

HP-4000
8.85" x 11.65" x 8.55" (22.3 cm x 29.6 cm x 21.7 cm)
6 lbs (2.7 kg)
12 to 24 VDC or 12 to 24 VAC 50-60 Hz, 7 watts
Operating: 32˚F to 113˚F (0˚C to 45˚C)
Relative humidity: 20% to 80% NC
Non-operating (storage): 14˚F to 140˚F (-10˚C to 60˚C)
Relative humidity: 5% to 85% NC
Less than one second
Up to 5 years via the standard internal lithium battery
7680 transactions
1 to 10 digits from keypad
530 users with field upgrade up to 3,498 users
9 bytes
77 bytes
Ethernet 10 Base-T (TCP/IP)
RS-232 serial output only
Proximity, Wiegand, magnetic stripe, bar code
(5 VDC provided by HandReader)
